4
Downloads:
Spec Sheet | User Manual

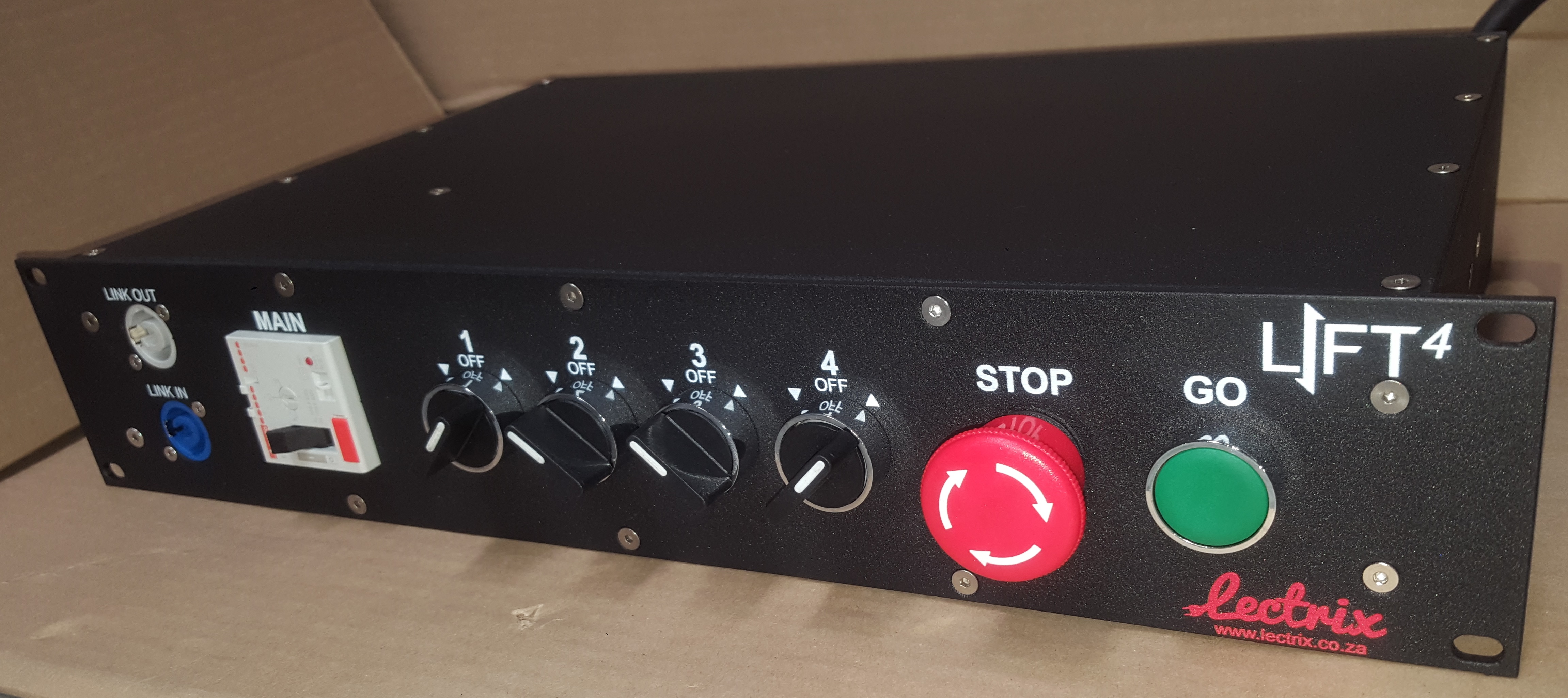

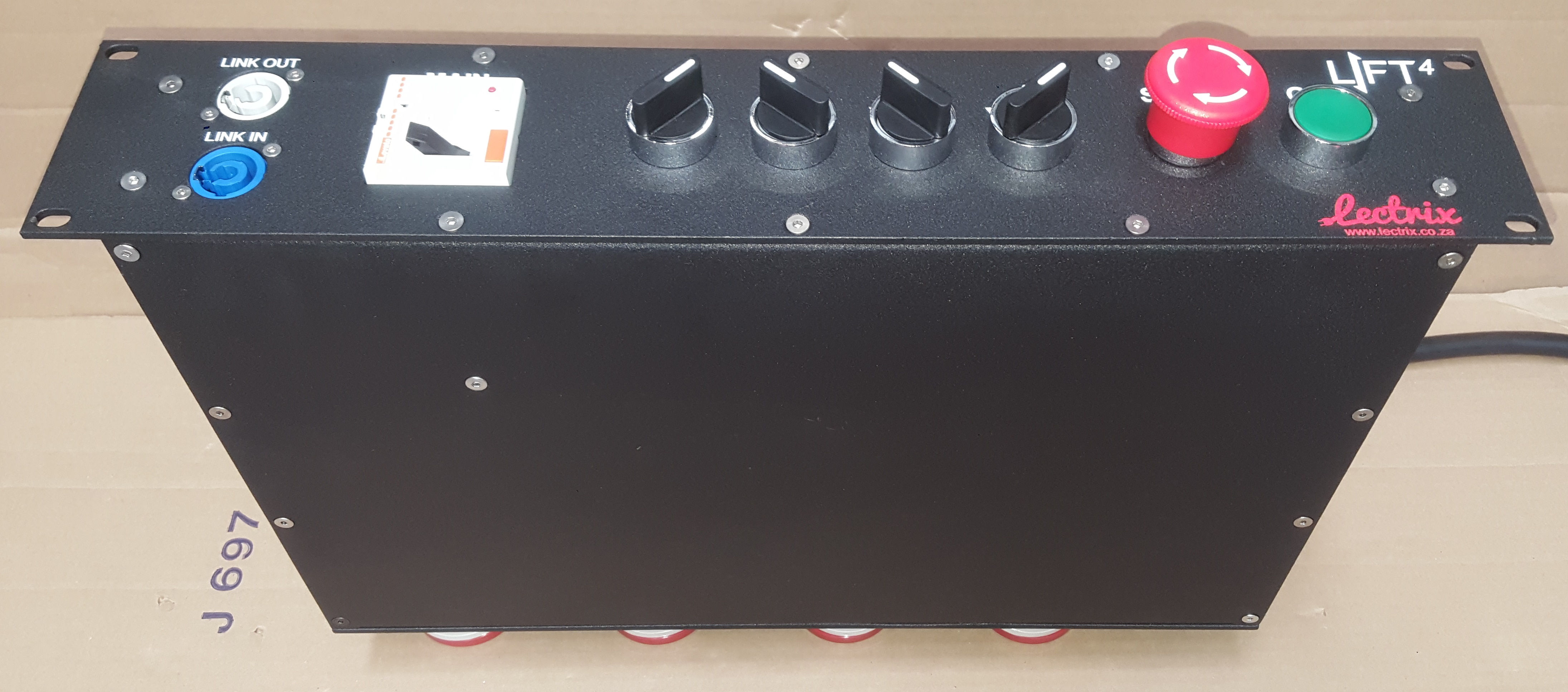

| Product Name | Lift 4 |
| #SKU | L-04 |
| Input Type | 1 x Inline 32A 5-pole three-phase Ceeform on 1.5M Tail (IP44)
1 x Neutrik 20A PowerCON (For linking multiple controllers only) |
| Single Phase Output Sockets | 1 x Neutrik 20A PowerCON (For linking multiple controllers only) |

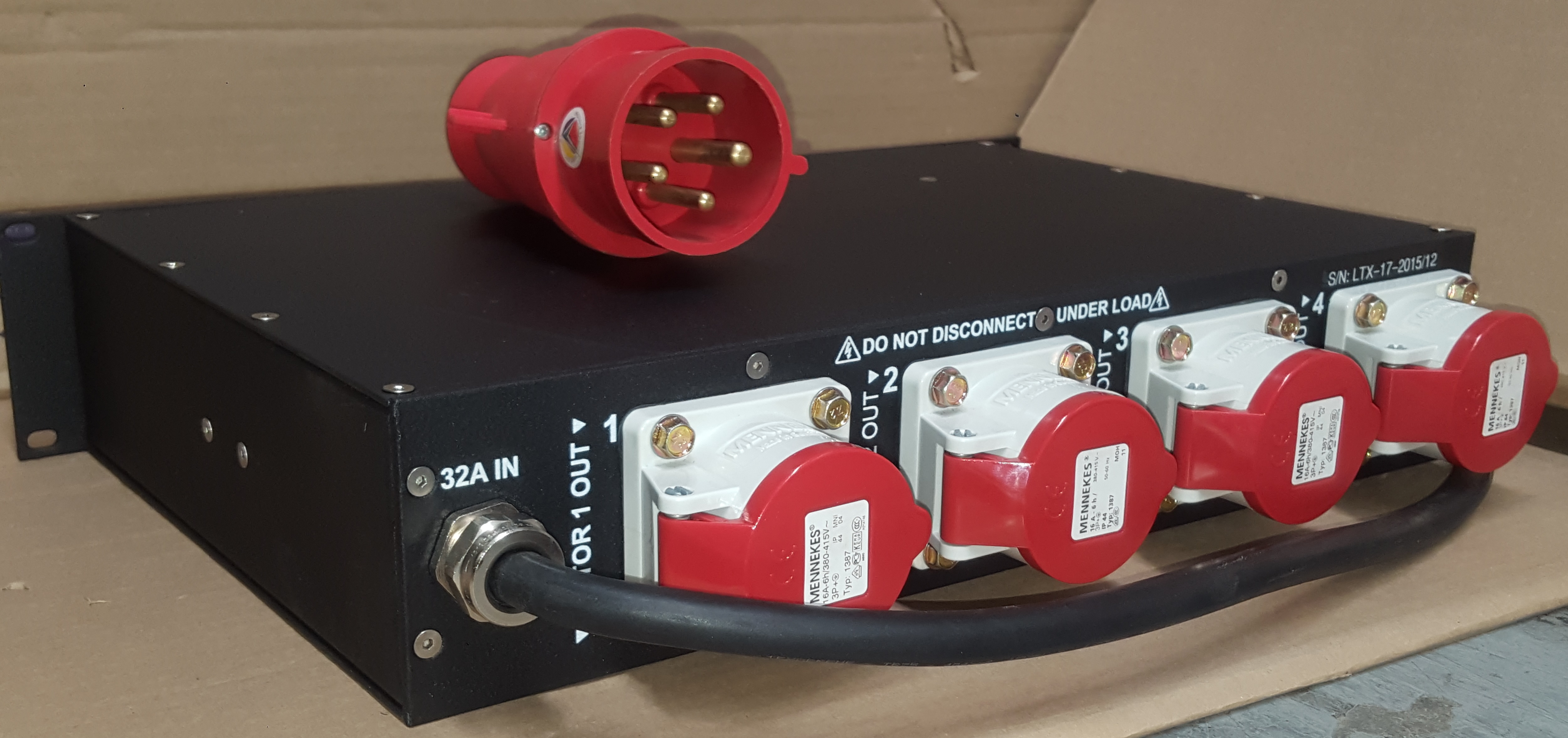

| Three Phase Output Sockets | 4 x 16A 4-pole Ceeform (IP44) [1 x Lovato adjustable manual motor starter] |
| Metering | None |
| Protection |
|
| Remote Monitoring | None |
| Indicators | None |
| Truss / Rack Mountable | 2U Rack Mountable |
| Size | 363mm x 482mm x 89mm |
| Weight | 10KG |
